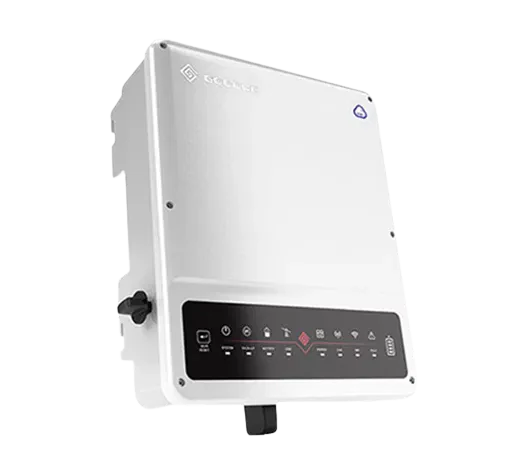

GW6000-EH On-grid
Technical Specifications: |
||
|---|---|---|
| Topology | : | transformerless |
| Charging current (A) | : | 25 |
| Start input voltage (V) | : | 90 |
| Interface 1 | : | W-Lan |
| MPP max. voltage range input (V) | : | 550 |
| Protection degree | : | IP65 |
| Interface 2 | : | RS485 |
| Number of independent MPPT (pcs) | : | 2 |
| Total number of string inputs | : | 2 |
| Min. temperature ambient (°C) | : | -35 |
| Max. AC power (kVA) | : | 6 |
| Battery Connection | : | DC |
| Max. generator power DC (kWp) | : | 8 |
| Decibel | : | 35 |
| Display | : | w/o display |
| Min. voltage range input (V) | : | 100 |
| Max. input current per MPPT (A). | : | 12.5/12.5 |
| Max. output current (A) | : | 26.1 |
| Max. input voltage DC (V) | : | 580 |
| Max. short circuit current per MPPT (A) | : | 15.2/15.2 |
| Max. efficiency (%) | : | 97.6 |
| Integrated DC switch | : | yes |
| Max. input current DC (A) total | : | 25 |
| Integrated AC switch | : | yes |
| Feed-in phases | : | 1 |
| European efficiency (%) | : | 97 |
| Max. short circuit current (A) total | : | 30.4 |
| Charging voltage (V) | : | 85-460 |
| AC nominal power (kW) | : | 6 |
| MPP min. voltage range input (V) | : | 100 |
| L * W * H Without Packaging (mm) | : | 147.00 * 354.00 * 433.00 |
