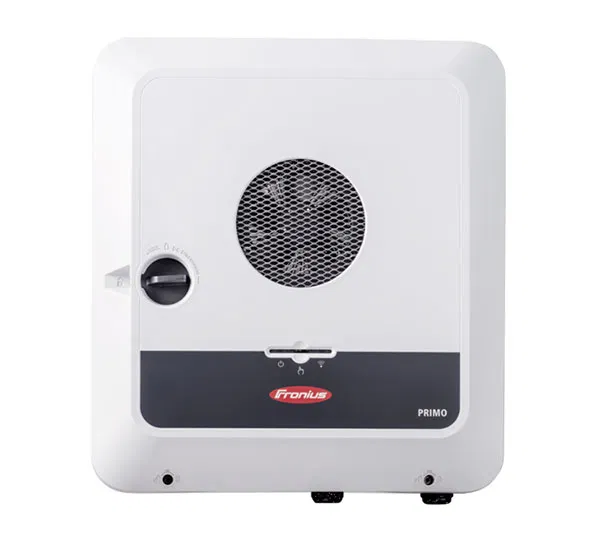

hybrid inverter, 9.999kW, 2MPPT, 1ph, 220V, 230V AC, 50/60Hz, w/out display, w/DC switch, WLAN/LAN/Webserver, hybrid function can be purchased additionally 5 + 5 Years Fronius Warranty Plus (After Free Registration)

Technical Specifications:
Topology	:	transformerless
Max. input current DC (A) total	:	22.00
Start input voltage (V)	:	80
Min. temperature ambient (°C)	:	-40
Interface 2	:	W-Lan
Backup system full	:	yes with supply
Backup system light	:	no
Max. input voltage DC (V)	:	600.00
Protection degree	:	IP66
Number of independent MPPT (pcs)	:	2
AC nominal power (kW)	:	10.00
Max. short circuit current (A) total	:	77.25
Max. output current (A)	:	45.50
Decibel	:	51
Arc Fault Circuit Interrupter	:	no
Total number of string inputs	:	2
Max. AC power (kVA)	:	12.50
Max. short circuit current per MPPT (A)	:	41,25/36
Degree of protection IP	:	IP66
Interface 1	:	RS485
Battery Connection	:	AC/DC
Step-Up converter	:	yes
Display	:	w/o display
Max. generator power DC (kWp)	:	10.36
DC connection	:	spring-type terminal
Integrated DC switch	:	yes
MPP max. voltage range input (V)	:	480.00
Contact ripple control receiver	:	yes
Contact for self-consumption optimization (e.g. for heat pump)	:	4
Charging voltage (V)	:	150-455
Feed-in phases	:	1
European efficiency (%)	:	97.00
MPP min. voltage range input (V)	:	65.00
Max. input current per MPPT (A).	:	22
Min. voltage range input (V)	:	65
Charging current (A)	:	22.00
Max. efficiency (%)	:	97.30
L * W * H Without Packaging (mm)	:	595.00 * 529.00 * 180.00
Product warranty (yr)	:	2
