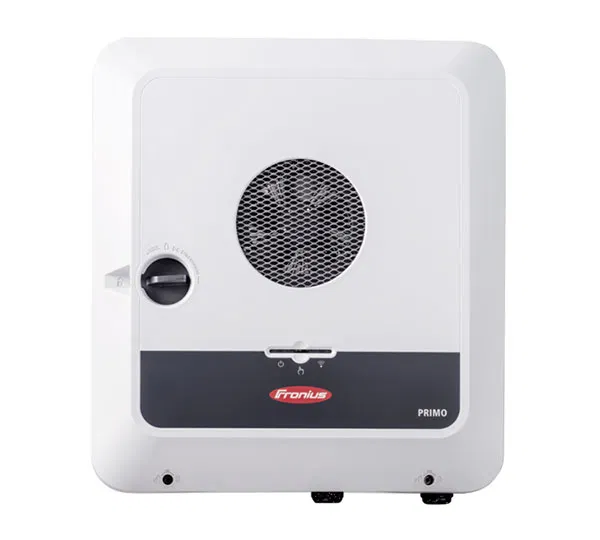

PRIMO GEN24 4.6
Even an innovative system like the Fronius GEN24 constantly needs new impulses for improvement. As of now, the Primo and Symo series are available with the storage connection still deactivated at the factory. You decide for yourself whether and when you want to use this function by means of an activation code. Of course, they will continue to receive the familiar version with already enabled battery port - distinguishable by the "plus" after the GEN24 in the device name. The smart PV-Point emergency power connection with a maximum output power of 3 kW is active in every version. All other functions and interfaces remain proven good.
Technical Specifications: |
||
|---|---|---|
| AC nominal power (kW) | : | 4.60 |
| Topology | : | transformerless |
| Start input voltage (V) | : | 80 |
| Min. temperature ambient (°C) | : | -40 |
| European efficiency (%) | : | 97.20 |
| Max. input current per MPPT (A). | : | 22,0/12,0 |
| Backup system full | : | yes with supply |
| Backup system light | : | no |
| Max. input voltage DC (V) | : | 600.00 |
| Protection degree | : | IP66 |
| Number of independent MPPT (pcs) | : | 2 |
| Arc Fault Circuit Interrupter | : | no |
| Max. input current DC (A) total | : | 34.00 |
| Decibel | : | 42 |
| Degree of protection IP | : | IP66 |
| Interface 1 | : | RS485 |
| Total number of string inputs | : | 4 |
| Battery Connection | : | AC/DC |
| Step-Up converter | : | yes |
| Max. output current (A) | : | 20.90 |
| Display | : | w/o display |
| Max. short circuit current (A) total | : | 55.00 |
| MPP max. voltage range input (V) | : | 530.00 |
| Max. short circuit current per MPPT (A) | : | 36,0/19,0 |
| Max. efficiency (%) | : | 97.60 |
| DC connection | : | spring-type terminal |
| Integrated DC switch | : | yes |
| Max. AC power (kVA) | : | 4.60 |
| Contact ripple control receiver | : | yes |
| Interface 2 | : | Ethernet |
| Contact for self-consumption optimization (e.g. for heat pump) | : | 4 |
| Feed-in phases | : | 1 |
| Max. generator power DC (kWp) | : | 6.90 |
| MPP min. voltage range input (V) | : | 65.00 |
| Charging voltage (V) | : | 150V-455V |
| Min. voltage range input (V) | : | 65 |
| Charging current (A) | : | 22.00 |
| L * W * H Without Packaging (mm) | : | 530.00 * 474.00 * 165.00 |
| Product warranty (yr) | : | 2 |
| Standard product warranty (yr) | : | 5 + 5 Years Fronius Warranty Plus (After Free Registration) |
