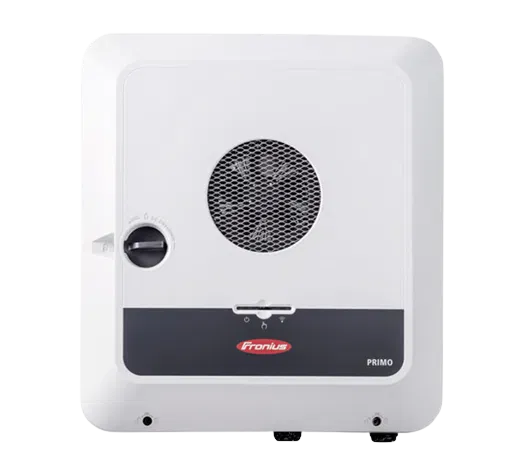

Even an innovative system like the Fronius GEN24 constantly needs new impetus for improvement. The Primo and Symo series are now available with the storage connection still deactivated at the factory. You decide for yourself whether and when you want to use this function by means of an activation code. Of course, you will still receive the familiar version with the battery port already activated - distinguishable by the ‘plus’ after the GEN24 in the device name. The smart PV-Point emergency power connection with a maximum output power of 3 kW is active in every version. All other functions and interfaces remain the same.



Technical Specifications:
Topology	:	transformerless
Start input voltage (V)	:	80
Min. temperature ambient (°C)	:	-40
European efficiency (%)	:	97.20
Max. input current per MPPT (A).	:	22,0/12,0
Backup system full	:	yes with supply
Backup system light	:	no
Max. input voltage DC (V)	:	600.00
Protection degree	:	IP66
Number of independent MPPT (pcs)	:	2
Arc Fault Circuit Interrupter	:	no
Max. input current DC (A) total	:	34.00
Decibel	:	42
Degree of protection IP	:	IP66
Interface 1	:	RS485
Total number of string inputs	:	4
AC nominal power (kW)	:	5.00
Battery Connection	:	AC/DC
Step-Up converter	:	yes
Display	:	w/o display
Max. short circuit current (A) total	:	55.00
MPP max. voltage range input (V)	:	530.00
Max. short circuit current per MPPT (A)	:	36,0/19,0
Max. efficiency (%)	:	97.60
DC connection	:	spring-type terminal
Integrated DC switch	:	yes
Contact ripple control receiver	:	yes
Max. AC power (kVA)	:	5.00
Interface 2	:	Ethernet
Contact for self-consumption optimization (e.g. for heat pump)	:	4
Feed-in phases	:	1
Max. generator power DC (kWp)	:	7.50
MPP min. voltage range input (V)	:	65.00
Charging voltage (V)	:	150V-455V
Min. voltage range input (V)	:	65
Charging current (A)	:	22.00
Max. output current (A)	:	22.70
L * W * H Without Packaging (mm)	:	528.00 * 474.00 * 163.00
Product warranty (yr)	:	2
