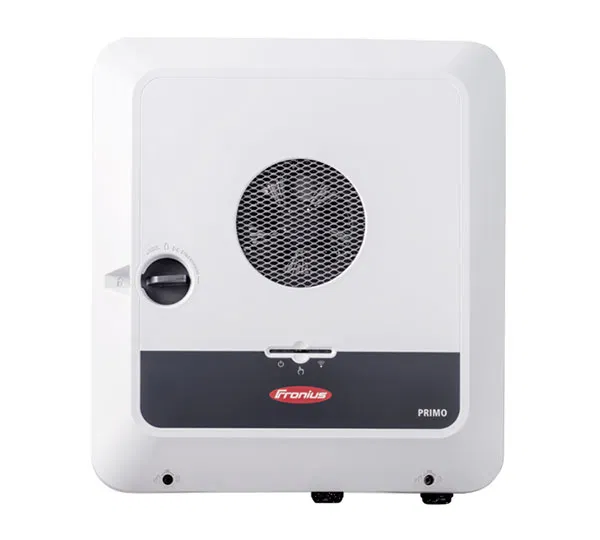

Even an innovative system like the Fronius GEN24 constantly needs new impetus for improvement. The Primo and Symo series are now available with the storage connection still deactivated at the factory. You decide for yourself whether and when you want to use this function by means of an activation code. Of course, you will still receive the familiar version with the battery port already activated - distinguishable by the ‘plus’ after the GEN24 in the device name. The smart PV-Point emergency power connection with a maximum output power of 3 kW is active in every version. All other functions and interfaces remain the same.

Product advantages:

Technical Specifications:
Topology	:	transformerless
Start input voltage (V)	:	80
Max. generator power DC (kWp)	:	12.00
Min. temperature ambient (°C)	:	-40
Interface 2	:	W-Lan
Backup system full	:	yes with supply
Backup system light	:	no
Max. input voltage DC (V)	:	600.00
Protection degree	:	IP66
Number of independent MPPT (pcs)	:	2
Max. short circuit current (A) total	:	77.25
Decibel	:	51
Arc Fault Circuit Interrupter	:	no
Total number of string inputs	:	2
Max. short circuit current per MPPT (A)	:	41,25/36,00
Degree of protection IP	:	IP66
Interface 1	:	RS485
Battery Connection	:	AC/DC
Step-Up converter	:	yes
Display	:	w/o display
European efficiency (%)	:	96.90
DC connection	:	spring-type terminal
Integrated DC switch	:	yes
Max. output current (A)	:	36.40
MPP max. voltage range input (V)	:	480.00
Max. input current DC (A) total	:	44.00
AC nominal power (kW)	:	8.00
Contact ripple control receiver	:	yes
Contact for self-consumption optimization (e.g. for heat pump)	:	4
Feed-in phases	:	1
MPP min. voltage range input (V)	:	65.00
Charging voltage (V)	:	150V-455V
Max. input current per MPPT (A).	:	22
Min. voltage range input (V)	:	65
Charging current (A)	:	22.00
Max. efficiency (%)	:	97.30
Max. AC power (kVA)	:	8.00
L * W * H Without Packaging (mm)	:	595.00 * 529.00 * 180.00
Product warranty (yr)	:	2
