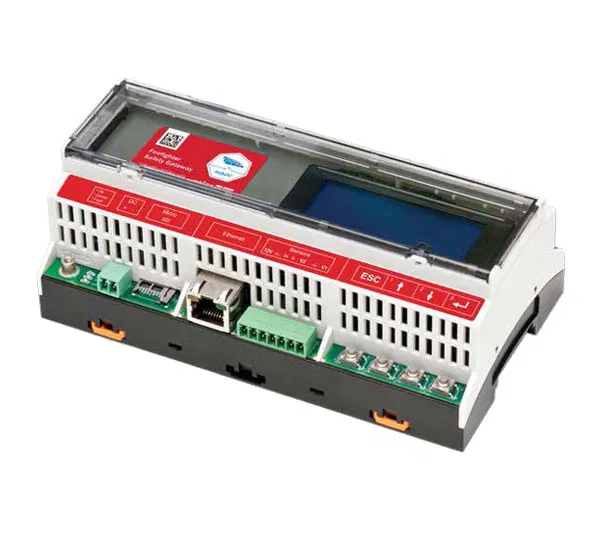

Central safety management for SolarEdge systems

Power:

• Fire department Gateway
• Art. no. 6641831
• Manufacturer No. SE1000-CCG-F-S1
• Power Supply - DIN Rail: Included, 100-240VAC, EU/UK/US/AU
• Supply Voltage: 9-14 Vdc
• Connector Type: terminal block
• Power Consumption: <2 W

Communication Interfaces:

• Ethernet Interface: 10/100-BaseT
• Wireless Connections: ZigBee module (*), GSM (*) (**)
• Fire Alarm Control Panel Interface: Alarm input, 5V, GND (***)
• SolarEdge Inverters: RS485
• sold separately
• EU only
• Emergency stop button is not supplied by SolarEdge

Environmental:

• Operating Temperatures: -20 to 60 °C
• Protection Rating: IP20 Indoor

Mechanical:

• Mounting Type: DIN Rail / Wall mount

Standard Compliance:

• Safety: UL60950-1, IEC-60950-1
• EMC: FCC Part 15 class B, IEC61000-6-2, IEC61000-6-3

Technical Specifications:
Display	:	with display
L * W * H Without Packaging (mm)	:	162.00 * 90.00 * 62.00
Product warranty (yr)	:	5
