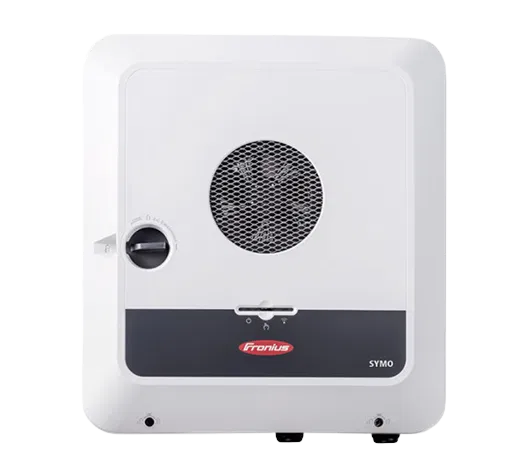

Even an innovative system like the Fronius GEN24 constantly needs new impulses for improvement. The Primo and Symo series are now available with the storage connection still deactivated at the factory. You decide for yourself whether and when you want to use this function by means of an activation code. Of course, you will still receive the familiar version with the battery port already activated - distinguished by the “plus” after the GEN24 in the device name. The smart PV-Point emergency power connection with a maximum output power of 3 kW is active in every version. All other functions and interfaces remain the same.

Technical Specifications:
Topology	:	transformerless
Charging current (A)	:	12.50
Max. short circuit current per MPPT (A)	:	20
Start input voltage (V)	:	80
Max. input current per MPPT (A).	:	12,5
Min. temperature ambient (°C)	:	-25
Backup system light	:	no
Protection degree	:	IP66
Number of independent MPPT (pcs)	:	2
Max. short circuit current (A) total	:	40.00
Backup system full	:	no
Arc Fault Circuit Interrupter	:	no
Surge protection AC	:	type 3
Max. input voltage DC (V)	:	1000.00
Degree of protection IP	:	IP66
Interface 1	:	RS485
Feed-in phases	:	3
AC nominal power (kW)	:	5.00
European efficiency (%)	:	97.50
Battery Connection	:	AC/DC
Step-Up converter	:	yes
Charging voltage (V)	:	160-500
Display	:	w/o display
Decibel	:	36
MPP min. voltage range input (V)	:	80.00
Max. efficiency (%)	:	98.20
DC connection	:	spring-type terminal
Integrated DC switch	:	yes
Min. voltage range input (V)	:	80
MPP max. voltage range input (V)	:	800.00
Total number of string inputs	:	3
Max. output current (A)	:	7.60
Surge protection DC	:	type 2
Max. input current DC (A) total	:	25.00
Contact ripple control receiver	:	yes
Max. AC power (kVA)	:	5.00
Interface 2	:	Ethernet
Contact for self-consumption optimization (e.g. for heat pump)	:	4
Max. generator power DC (kWp)	:	7.50
L * W * H Without Packaging (mm)	:	530.00 * 474.00 * 165.00
Product warranty (yr)	:	2
