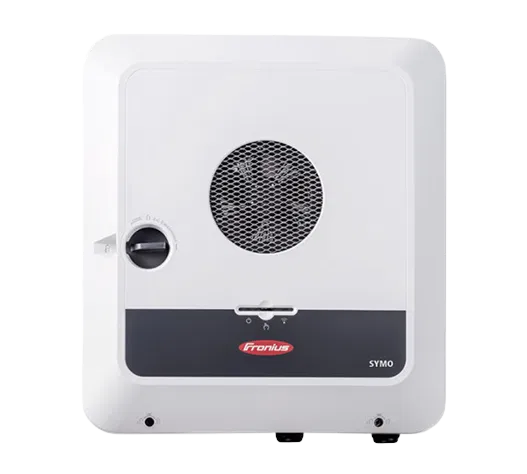

Even an innovative system like the Fronius GEN24 constantly needs new impulses for improvement. The Primo and Symo series are now available with the storage connection still deactivated at the factory. You decide for yourself whether and when you want to use this function by means of an activation code. Of course, you will still receive the familiar version with the battery port already activated - distinguished by the “plus” after the GEN24 in the device name. The smart PV-Point emergency power connection with a maximum output power of 3 kW is active in every version. All other functions and interfaces remain the same.

Technical Specifications:
Max. short circuit current per MPPT (A)	:	40/20
Topology	:	transformerless
Start input voltage (V)	:	80
Total number of string inputs	:	6
Min. temperature ambient (°C)	:	-25
Backup system full	:	yes with supply
Backup system light	:	no
Protection degree	:	IP66
Number of independent MPPT (pcs)	:	2
Arc Fault Circuit Interrupter	:	no
Surge protection AC	:	type 3
Max. generator power DC (kWp)	:	9
Max. input voltage DC (V)	:	1000
Degree of protection IP	:	IP66
Interface 1	:	RS485
Feed-in phases	:	3
Max. AC power (kVA)	:	6
Battery Connection	:	AC/DC
Max. output current (A)	:	8.7
Step-Up converter	:	yes
Charging voltage (V)	:	160-500
Display	:	w/o display
Decibel	:	47
MPP min. voltage range input (V)	:	80
Max. efficiency (%)	:	98.2
DC connection	:	spring-type terminal
Integrated DC switch	:	yes
Min. voltage range input (V)	:	80
MPP max. voltage range input (V)	:	800
Surge protection DC	:	type 2
Max. input current DC (A) total	:	37.5
Contact ripple control receiver	:	yes
Grid protection	:	yes
Interface 2	:	Ethernet
Contact for self-consumption optimization (e.g. for heat pump)	:	4
Max. short circuit current (A) total	:	60
AC nominal power (kW)	:	6
Max. input current per MPPT (A).	:	25/12,5
Charging current (A)	:	22
European efficiency (%)	:	97.7
L * W * H Without Packaging (mm)	:	595.00 * 529.00 * 180.00
Product warranty (yr)	:	2
Standard product warranty (yr)	:	5 + 5 Years Fronius Warranty Plus (After Free Registration)
